“All In One” Universal Control Systems
The All-in-one universal control systems manufactured by GTV GmbH are capable of providing stable and reproducible control for use of almost all torches available on the thermal spray market.Experience has shown that there is no spray gun universally superior to others in every application in terms of coating quality, efficiency and economics. In reality there are a variety of high quality spraying guns that feature specific advantages and disadvantages and therefore are best suited for special individual applications.With the All-In-One universal control systems, the customer can chose for themselves which torch is best suited for a specific application and quickly change over from one spray gun to the next.
|
HVOF

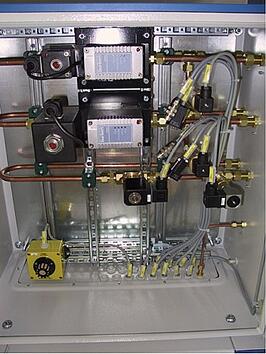

GTV HVOF GLC Controller
Used with most HVOF Torches
(Liquid and Gas Fuel Models)
- GTV GLC 720
- GTV Top Gun, HV 2000
- SM DJ8M, DJ9M
- Jet Kote
- GTV K2
- PX JP 5000, JP 5000 ST
- WokaStar
- WokaJet
- CJS (Kerosene & H2)
Controller Features
Siemens S7 PLC
- Siemens Touch Screen Operator Panel TP 177B
- Easy and clearly readable colour monitor
- Oxygen mass flow controller
- Pressure sensor for all process gases inlet pressure
- Flow control of powder feed gas (MFC or Volumetric)
- TWIN type powder feeder
- Gas warning sensor with signal unit for fuel gas systems
- 600 x 600 x 1.300 mm (L x W x H)
Gas Fuel
- Fuel gas mass flow controller (two calibrations e.g. for hydrogen and methane / natural gas or ethylene / propane available)
Liquid Fuel
- Long lasting kerosene membrane pump
- Control circuit with kerosene flowmeter and proportional valve or Coriolis type mass flow controller
|
Plasma

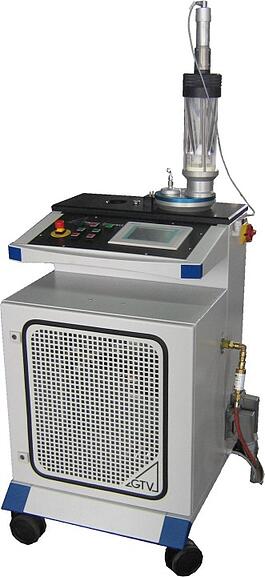

MF-P 1000 C Compact Plasma Spray Controller
Used with most Single Cathode – Single Anode Plasma Torches
- GTV F4, F6, P2
- GTV 3MB, 7MB, 9MB, 11MB
- GTV F1, F7
- SG 100
Controller Features
Siemens S7 PLC
- Siemens Touch Screen Operator Panel TP 177B
- Easy to read colour monitor
- Mass flow controller 100 l/min for argon (primary plasma gas)
- Mass flow controller 15 l/min for hydrogen (secondary plasma gas)
- Mass flow controller 10 l/min for argon (carrier gas)
- Pressure sensor for argon and hydrogen inlet pressure
- TWIN type powder feeder
- Gas warning sensor with alarm unit
- 600 x 600 x 1.300 mm (L x W x H)
“All in One“ Control System
|
